High Density Tungsten Nickel Iron Alloy Cylinder | Custom W-Ni-Fe Rod Cylinder

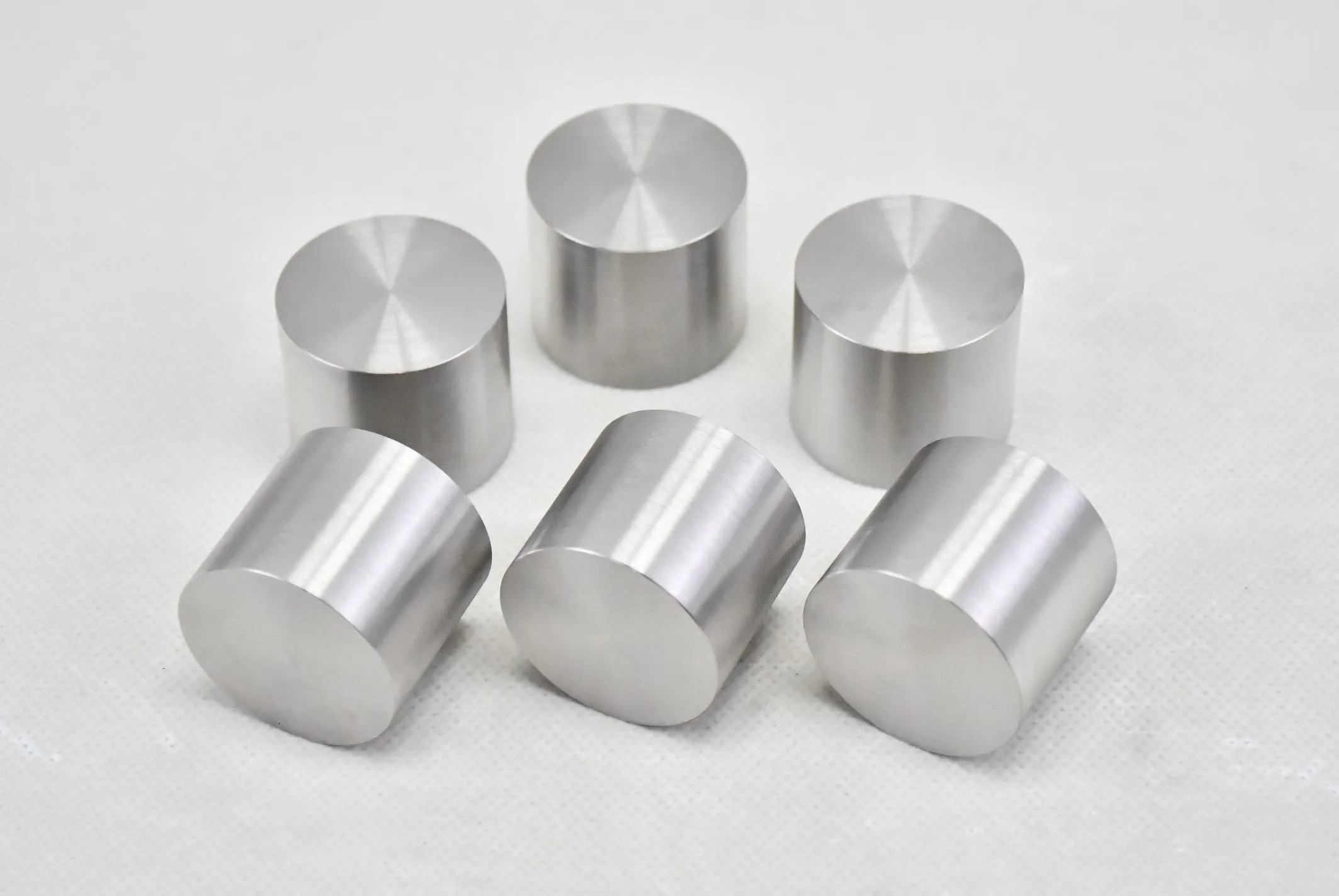

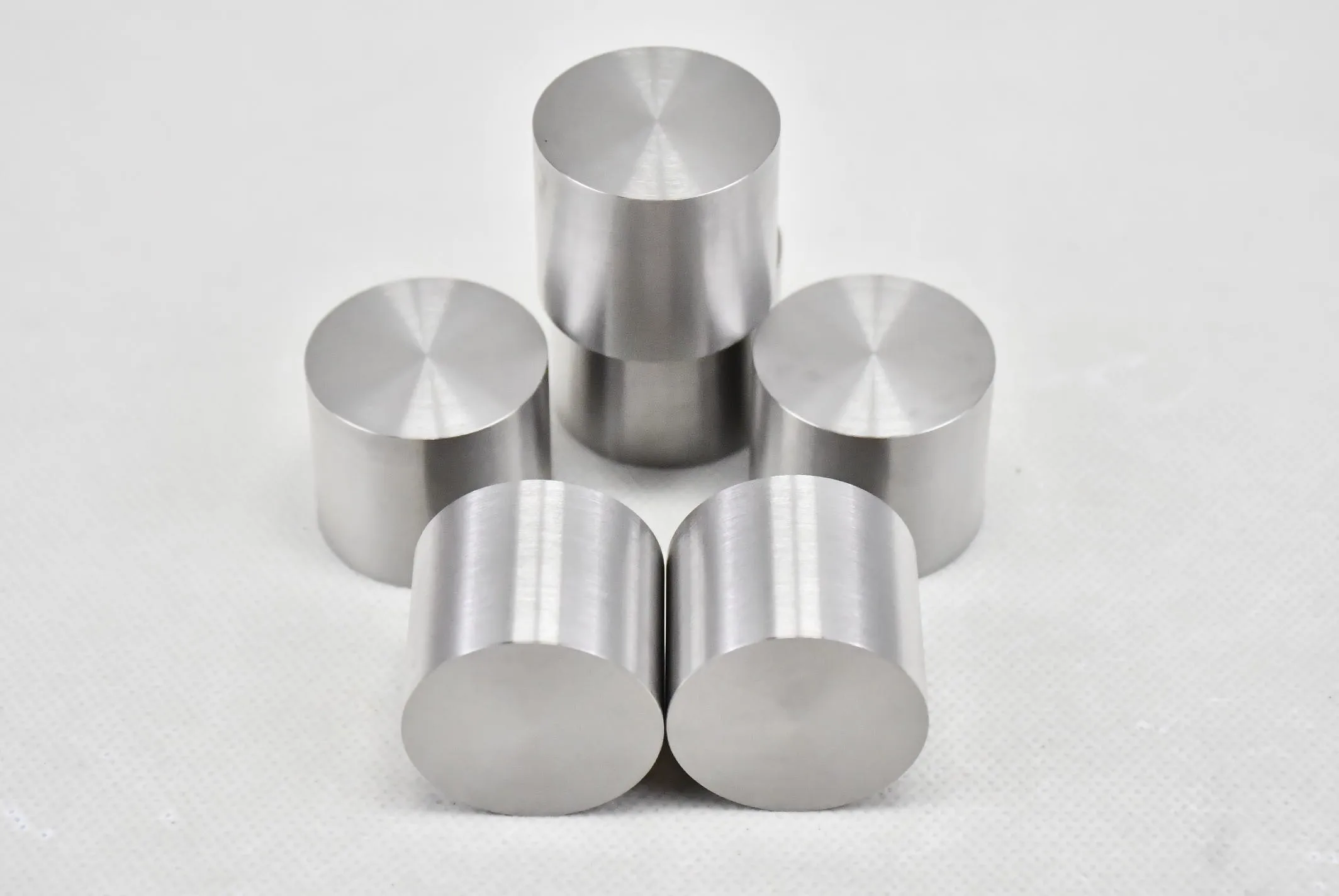

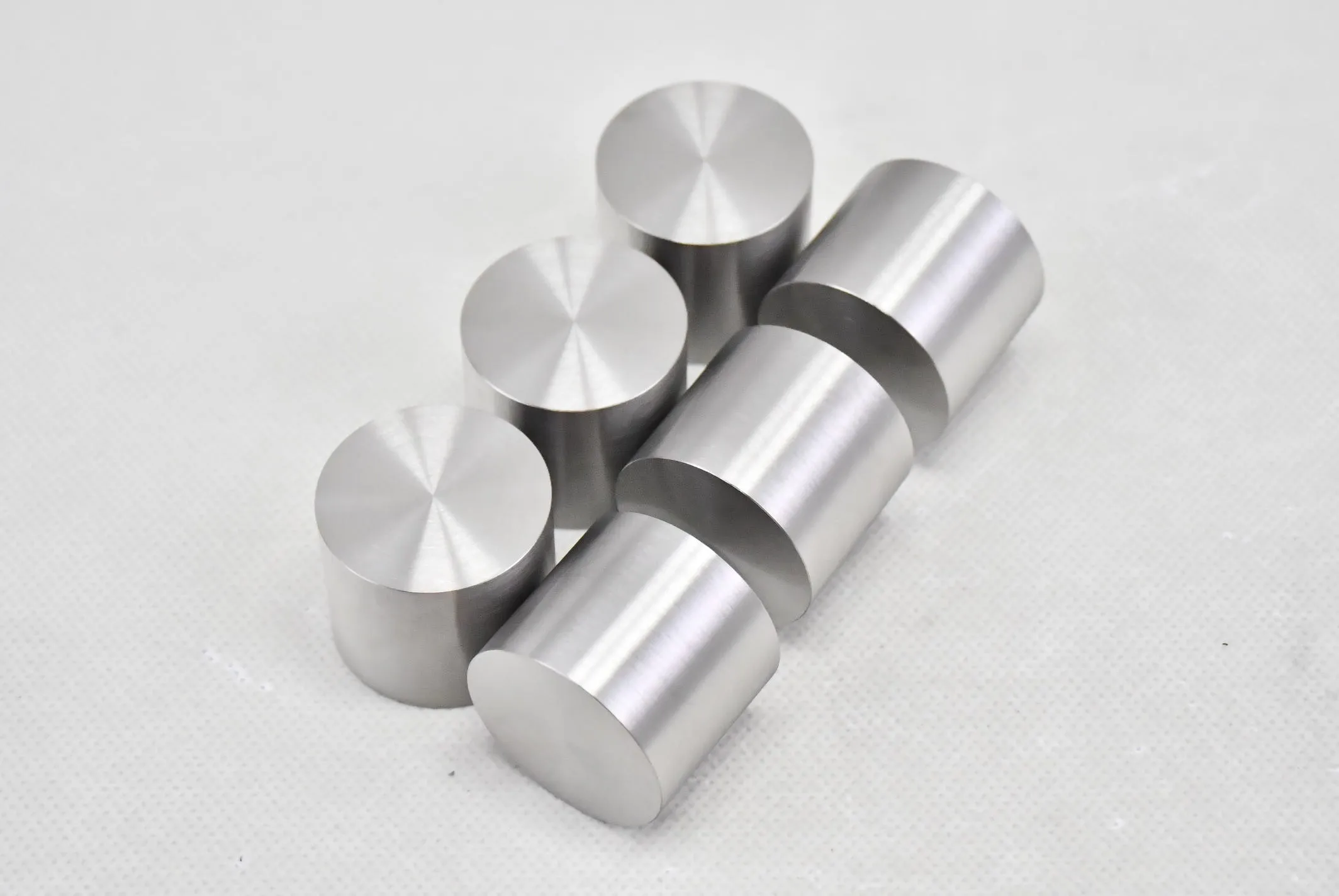

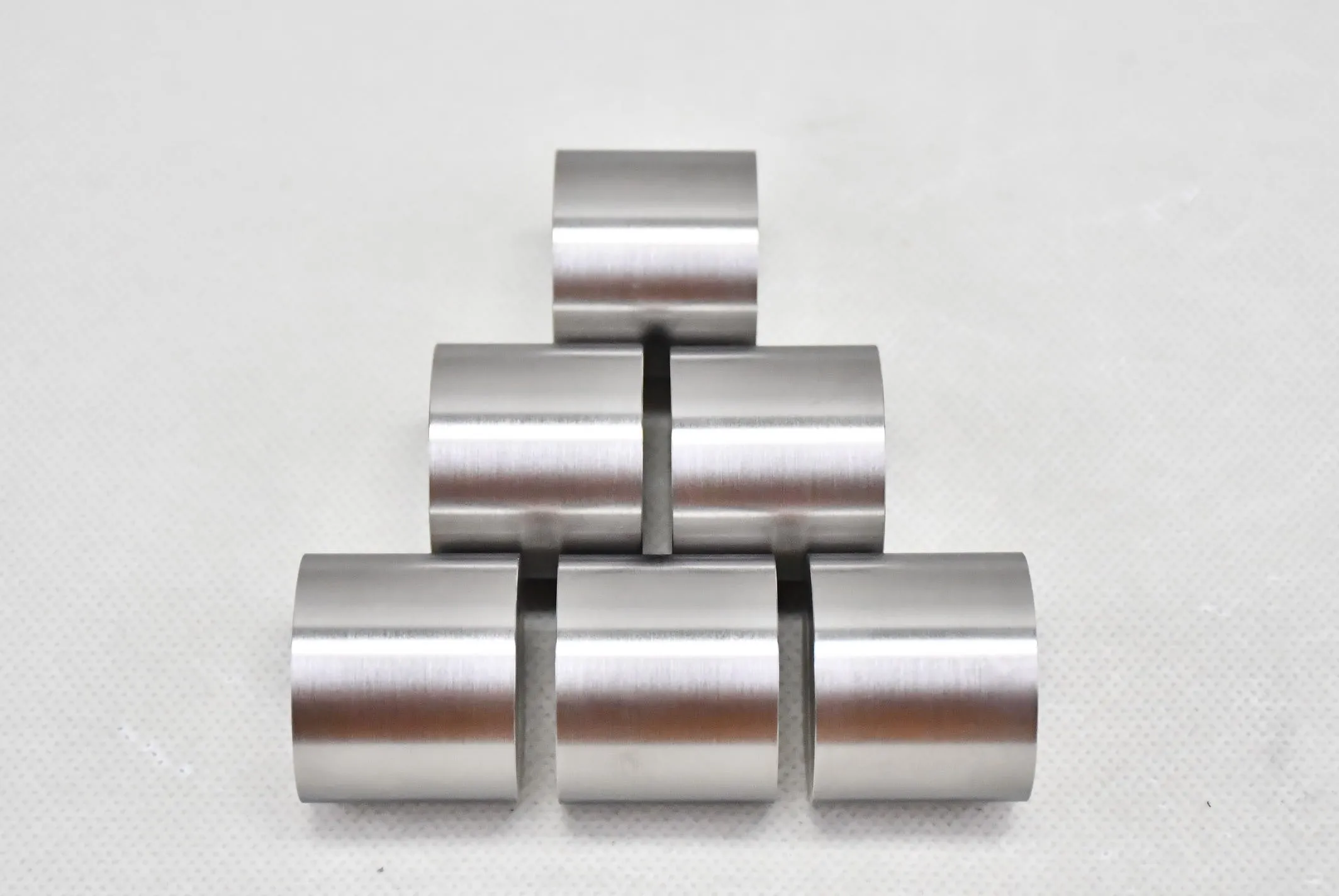

Zhuzhou Jiuding Metal Technology Co., Ltd. High-Density Tungsten Nickel Iron (W-Ni-Fe) Alloy Cylinders are high-specific-gravity structural cylindrical parts developed for industrial counterweight balancing, vibration damping, gravity weighting and mechanical stabilization scenarios. Manufactured via mature PM powder metallurgy compression forming and liquid-phase sintering technology, our tungsten alloy cylinders strictly comply with Mil-T-21014 US military standard, ASTM B777-99 / ASTM B777-15 (R2020) industrial specifications, and GB/T 1804-2000 general dimensional tolerance standard. Available in mainstream 90W-Ni-Fe and 95W-Ni-Fe grades, these high-density tungsten cylinders support full-size custom processing to meet diverse industrial equipment assembly requirements.

W-Ni-Fe alloy cylinders feature ultra-high density ranging from 16.85 g/cm³ to 18.35 g/cm³, far exceeding the specific gravity of steel, copper and conventional alloy materials. The high-mass compact structure realizes precise gravity matching and effective vibration suppression in limited installation space, greatly improving mechanical operation stability and structural coordination. We support Sintered and Polished optional surface states and full non-standard customization of diameter, length and tolerance. All finished products can be provided with EN 10204 3.1 inspection certificates, fully compliant with RoHS, REACH and global industrial procurement standards.

Powder Metallurgy (PM) Manufacturing Process

All high-density tungsten nickel iron alloy cylinders adopt professional PM powder metallurgy pressing and sintering integrated process, which fundamentally solves the problems of uneven density, internal pores and unstable performance of traditional casting and forging parts, ensuring high consistency of batch cylindrical products:

• Precision Alloy Proportioning & Mixing: High-purity tungsten, nickel and iron raw materials are proportioned according to standard 90/95 tungsten grades. Uniform powder mixing ensures consistent alloy composition and stable physical and mechanical properties of each cylinder blank.

• High-Pressure Die Compression Forming: Adopt professional powder metallurgy pressing equipment for integral cylindrical green blank forming, with regular shape, uniform density and reasonable machining allowance, laying a foundation for subsequent precision finishing.

• High-Temperature Liquid-Phase Sintering: Under precise temperature and atmosphere protection, high-density sintering is completed to realize tight bonding between alloy particles, significantly improving material compactness, structural rigidity and overall stability.

• Precision Finishing & Custom Machining: Support turning, grinding, straightening and length cutting according to customer requirements. Provide original Sintered surface and high-precision Polished surface treatment to meet different assembly and appearance standards.

The standardized PM production process enables our tungsten nickel iron cylinders to feature uniform microstructure, stable density distribution and excellent machinability, supporting mass production and personalized customized processing.

Core Product Advantages

High-density W-Ni-Fe alloy cylinders stand out in industrial weighting and vibration reduction applications with their superior specific gravity performance and customizable characteristics:

• Ultra-High Specific Gravity & Compact Structure: High density realizes large weight in small volume, effectively reducing equipment structural space, optimizing gravity center distribution, and realizing miniaturized and lightweight design of balancing components.

• Excellent Vibration Damping & Stabilization: High mass inertia effectively absorbs mechanical micro-vibration and high-frequency resonance during equipment operation, reducing jitter, lowering noise and improving running smoothness and machining accuracy.

• High Structural Strength & Deformation Resistance: Integral sintered structure features high compressive strength and rigidity, no deformation or fatigue failure under long-term high-load operation, ensuring long-term stable balancing effect.

• Full-Range Customization Capability: Support custom diameter, custom length, special tolerance and non-standard size production. All customized dimensions strictly follow GB/T 1804 precision tolerance standards to match various equipment assembly structures.

• Excellent Machinability: Moderate hardness and good toughness support secondary processing such as cutting, drilling, grooving and threading, convenient for customers to complete secondary structural matching and assembly.

• Good Environmental Adaptability: Low thermal expansion coefficient, excellent oxidation resistance and corrosion resistance, stable performance in high-temperature, humid and complex industrial environments.

• Eco-Friendly & Certifiable: Lead-free and non-toxic formula, fully compliant with international environmental protection standards. Support complete factory test reports and EN 10204 3.1 certification for export procurement.

Product Performance Features

• Precision Gravity Balancing: Uniform density ensures accurate single-piece weight and stable batch performance, realizing high-precision static and dynamic balancing of mechanical equipment.

• Long Service Life & Fatigue Resistance: Dense metallurgical structure avoids loose particle shedding and performance attenuation, suitable for long-term continuous industrial operation.

• Dual Surface Optional: Sintered surface for cost-effective rough machining scenarios; Polished smooth surface for high-precision assembly and appearance-sensitive applications.

• Strong Batch Consistency: Standardized PM production ensures identical density, hardness and mechanical properties for each batch, supporting large-scale standardized equipment matching.

Executive & Testing Standards

Executive Standards: Mil-T-21014 (US Military Tungsten Heavy Alloy Specification), ASTM B777-99 / ASTM B777-15 (R2020), Chinese GB National Product Quality Standards, GB/T 1804-2000 General Dimensional Tolerance Standard (equivalent to ISO 2768-1).

Surface Condition: Sintered / Polished, optional and customizable according to customer requirements.

Customization Capability: Full-size custom diameter, custom length and special tolerance processing, all customized sizes comply with GB/T 1804 precision standards.

Inspection Certificate: Support EN 10204 3.1 material inspection certificate, providing complete material composition and mechanical performance test data.

W-Ni-Fe Alloy Cylinder Standard Technical Parameters

Parameter Note: All parameters are tested under standard sintered state; customized special sizes and tolerances can be adjusted according to customer technical drawings.

W-Ni-Fe Tungsten Alloy Applications

With ultra-high specific gravity, stable mechanical performance and flexible customization advantages, tungsten nickel iron alloy cylinders are widely used in industrial fields requiring precision weighting, vibration reduction and structural stabilization:

• Mechanical Counterweight Balancing: Precision counterweight cylinders for automation equipment, rotating machinery and tool fixtures, optimizing equipment center of gravity and improving operating stability.

• Vibration Damping Components: Anti-vibration cylindrical parts for CNC machining tools, long-overhang processing equipment and precision mechanical platforms, effectively suppressing flutter and vibration.

• Aerospace & Automotive Industry: High-density balancing cylinders for aviation equipment, automobile chassis and high-speed rotating parts, realizing lightweight and high-precision structural design.

• Drilling & Exploration Equipment: Downhole weighting cylinders and gravity balancing parts for geological exploration and oil drilling tools, adapting to high-pressure and complex working conditions.

• Sports & Precision Equipment: High-density balancing blanks for professional sports equipment, precision instruments and optical devices, ensuring stable operation and accurate positioning.

• Custom Industrial Structural Parts: Various non-standard high-density cylindrical structural parts customized for special industrial equipment, supporting personalized structural matching.

Production & Quality Assurance

All high-density tungsten nickel iron alloy cylinders are manufactured through professional PM powder metallurgy compression forming and liquid-phase sintering processes, fully compliant with Mil-T-21014 military specifications, ASTM B777-99 industrial standards and GB/T 1804-2000 dimensional tolerance standards. Zhuzhou Jiuding Metal Technology Co., Ltd. implements strict full-process quality control including raw material proportioning, high-pressure pressing forming, sintering parameter monitoring, precision finishing and finished product performance testing, ensuring stable density, accurate dimensions and consistent mechanical performance for every customized cylinder.

We can provide complete qualification documents such as third-party test reports, COA certificates and EN 10204 3.1 inspection certificates to meet global high-standard procurement requirements. Our factory holds ISO9001, ISO45001, ISO18001 and ISO13485 certifications, supporting standard bulk supply and OEM & ODM personalized custom processing services.
